Andromeda – FPGA based System-on-Chip Boards
The Andromeda family of System-on-Modules (SOM) / System-on-Chip (SoC) modules is optimized for high-end applications. It supports up to 6 Samtec ADM6-60 high-speed connectors with up to 686 user I/Os. Thanks to its built-in large Xilinx Zynq Ultrascale+ MPSoC devices with integrated ARM CPUs, the Andromeda SOMs are the optimal solution for the most rugged and demanding applications.
| Module | SoC | Memory | I/O | Size | |
|---|---|---|---|---|---|
| Andromeda IAE50 |  | Intel Agilex 5 E-Series SoC | DDR4 SDRAM with ECC | 270 | 68 x 52 mm |
| Andromeda XRU30 | AMD Zynq™ Ultrascale+ RFSoC | DDR4 SDRAM with ECC | 162 | 68 x 52 mm | |
| Andromeda XRU50 |  | AMD Zynq™ Ultrascale+ RFSoC | DDR4 SDRAM with ECC | 202 | 80 × 64 mm |
| Andromeda XVA50 | AMD Versal™ AI Core/Edge Series SoC | DDR4 SDRAM with ECC | 122 | 68 x 52 mm | |
| Andromeda XZU65 |  | AMD Zynq UltraScale+ MPSoC | DDR4 SDRAM with ECC | 322 | 68 x 52 mm |
| Andromeda XZU70 | AMD Zynq UltraScale+ MPSoC | DDR4 SDRAM | 202 | 80 × 64 mm | |

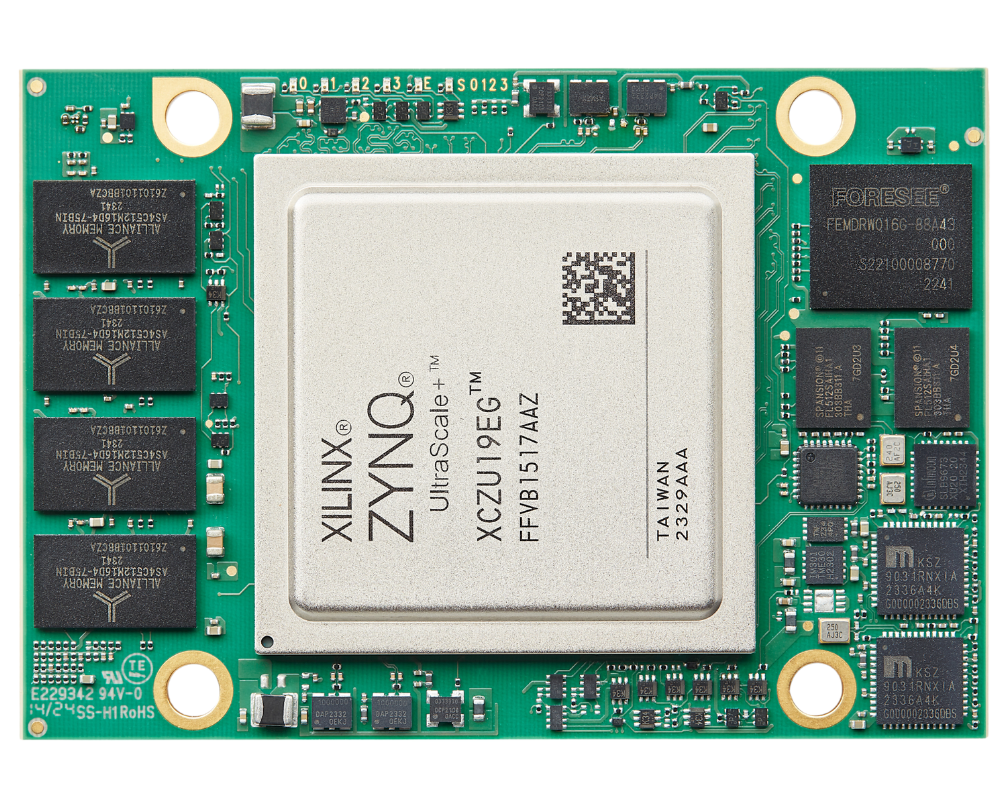

| Andromeda XZU80 | AMD Zynq UltraScale+ MPSoC | DDR4 SDRAM | 382 | 80 × 64 mm | |
| Andromeda XZU90 |  | AMD Zynq UltraScale+ MPSoC | DDR4 SDRAM | 686 | 80 × 64 mm |
Pluto – FPGA based System-on-Chip Boards
The Pluto family of System-on-Modules (SOM) / System-on-Chip (SoC) modules is optimized for low-end applications with a tiny footprint. The module is 30mm x 30mm.
| Module | SoC | Memory | I/O | Size | |
|---|---|---|---|---|---|
| Pluto XZU20 |  | AMD Zynq UltraScale+ MPSoC | DDR4 LPSDRAM with ECC | 106 | 30 x 30 mm |
Mercury – SoC Boards
The Mercury family of System-on-Modules (SOM) / System-on-Chip (SoC) modules combines the flexibility of an on-board ARM®; processor with the raw power of FPGA logic, alongside a high number of user I/Os for high-performance applications. Modules marked as Mercury+ have an additional third connector, presenting even more available I/Os for additional interfacing with the FPGA or ARM CPU.
| Module | SoC | Memory | I/O | Size | |
|---|---|---|---|---|---|
| Mercury+ AA1 |  | Altera Arria 10 SoC | DDR4 SDRAM | 246 | 74 × 54 mm |
| Mercury SA1 |  | Altera Cyclone V SoC | DDR3L SDRAM | 150 | 56 × 54 mm |
| Mercury+ SA2 |  | Altera Cyclone V SoC | DDR3 SDRAM | 258 | 74 × 54 mm |
| Mercury+ XU1 |  | Xilinx Zynq UltraScale+ | DDR4 SDRAM | 274 | 74 × 54 mm |
| Mercury XU5 |  | Xilinx Zynq UltraScale+ | DDR4 SDRAM | 178 | 56 × 54 mm |
| Mercury+ XU6 |  | Xilinx Zynq UltraScale+ | DDR4 SDRAM | 294 | 65 × 54 mm |
| Mercury+ XU7 |  | Xilinx Zynq UltraScale+ | DDR4 SDRAM | 236 | 74 × 54 mm |
| Mercury+ XU8 |  | Xilinx Zynq UltraScale+ | DDR4 SDRAM | 236 | 74 × 54 mm |
| Mercury+ XU9 |  | Xilinx Zynq UltraScale+ | DDR4 SDRAM | 236 | 74 × 54 mm |
| Mercury ZX1 |  | Xilinx Zynq 7000 | DDR3 SDRAM | 142 | 65 × 54 mm |
| Mercury ZX5 |  | Xilinx Zynq 7000 | DDR3 SDRAM | 158 | 56 × 54 mm |
Mercury Modules Selection Guide and Roadmap:
Mars – SoC Boards
The Mars family of System-on-Modules (SOM) / System-on-Chip (SoC) modules features the potent combination of powerful, flexible embedded processors with configurable FPGA logic, all in the industry-standard SO-DIMM form factor. These features, alongside high memory capacity and diverse I/O interfacing options, present the possibility to develop powerful on-board processing systems.
| Module | SoC | Memory | I/O | Size | |
|---|---|---|---|---|---|
| Mars MA3 |  | Altera Cyclone V SoC | DDR3 SDRAM | 108 | 67.6 × 30 mm |
| Mars ZX2 |  | Xilinx Zynq -7000 | DDR3 SDRAM | 108 | 67.6 × 30 mm |
| Mars ZX3 |  | Xilinx Zynq -7000 | DDR3 SDRAM | 108 | 67.6 × 30 mm |
| Mars XU3 |  | Xilinx Zynq UltraScale+ | DDR4 SDRAM | 108 | 67.6 × 30 mm |
